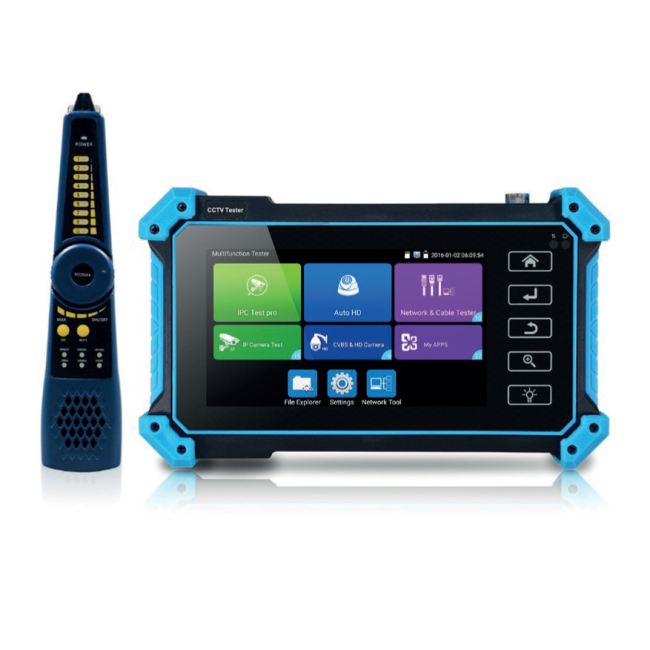

Labgear Compact 5 in 1 CCTV Tester

Designed for testing installations of IP, analogue and HD coaxial
cameras as well as other security equipment. The tester supports
several ONVIF PTZ and analogue PTZ controls.

There’s no need carry a variety of testers, this compact all-in-one unit is
designed to make CCTV installations and service work simpler.

Applications:

• CCTV system installation
• Network cabling projects
• 4K H.265 IP camera testing
• Video transmission channel testing
• PTZ controller
Camera tests:
• AXIS, Hikvision camera test, enter ONVIF app,
input username and password to test
• CVBS camera test and PTZ control
• IPC TEST (Non – ONVIF test), HIK test tool (Hikvision camera),
DH test tool (Dahua camera)
• IP discovery, one key to detect all network cameras IP addresses
• Rapid video, one key to detect all network cameras and auto display
• DC12V 3A power output/PoE DC48V power output, Max power 25.5W
• Built in Wi-Fi, display image from the wireless camera, creates a
Wi-Fi hotspot
H.265
COMPATIBLE
50037PI

Kit Contents:

1x CCTV tester unit with built-in Li-ion battery
(7.4V DC 3350mAh)
1x Digital network cable tracer
1x 12V????1A Plug-in charger/PSU
1x Hard protective carry case
1x 3.5mm Jack to crocodile clips test lead
1x RS485 to crocodile clips test lead
1x Jack power test lead
1x BNC test lead
1x Wrist strap
1x Safety cord
1x User guide
