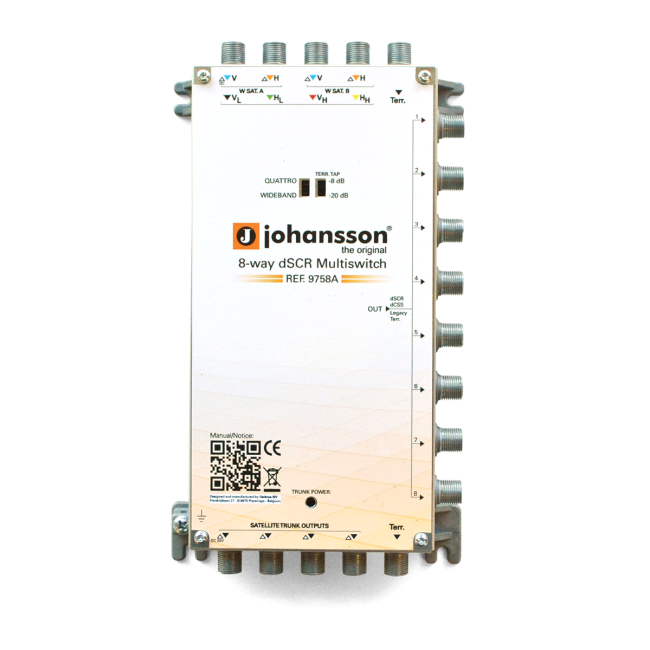

Johansson DSCR Multiswitch 8 Outputs + Terrestrial Active
9758A Digital SCR Multiswitch 8 outputs
4 satellite + 1 terrestrial inputs, 8 SCR outputs, Active Terrestrial Amplifier
THE NEXT GENERATION DSCR MULTISWITCH FROM YOUR MARKET LEADER
This state-of-the-art Multiswitch in a compact die-cast housing is optimized for installation in narrow spaces and will make your installation more successful.
Multi-standard: Wideband, dSCR, dCSS, Legacy, Terr.
Optimized performance and power consumption
Compact die-cast housing for easy installation
Active Terrestrial Amplifier
€447.72
SKU
AEJOH9758A
| Trunk inputs / outputs | - |
SAT: 4 | TERR: 1
|
| Outputs | - |
8 (dSCR/dCSS/Legacy/TERR)
|
| Frequency | MHz |
SAT: 290 - 2340 | TERR: 88 - 862
|
| Min. input level SAT | dBµV |
Universal LNB: 62 | Wideband LNB: 67
|
| Max. input level TERR | dBµV |
Amplified: 109 | Bypass: 121
|
| Trunk return loss | dB | > 10 |
| Trunk insertion Loss | dB |
SAT: 4 | TERR: 3
|
| SAT positions | - |
Universal LNB: 1 | Wideband LNB: 2
|
| dSCR channel output power | dBµV |
88 (AGC controlled)
|
| Output return loss | dB | > 10 |
| TERR tap loss | dB |
Bypass: 20 | Amplified: 8
|
| SCR channels (16 users/output) | MHz |
Between 950 and 2150
|
| Supported standards | - |
EN 50494 (SCD)
EN 50607 (SCD 2) BSKYB Legacy |
| Trunk termination DC block required | Ohm |
75 (SAT & TERR)
|
| DC power via SAT trunks | V | 20 |
| Consumption | W | 20 |
| Operating temperature | °C |
-20 to +50 (indoor housing)
|
| Dimensions | mm | 204 x 117 x 39 |
| Weight | kg | 0.53 |
| EAN | - |
9758A: 5404041102351
9758AMC: 5404041102368 |
| SKU | AEJOH9758A |
|---|---|
| In Store | 4 |
| Total Stock | 4 |
