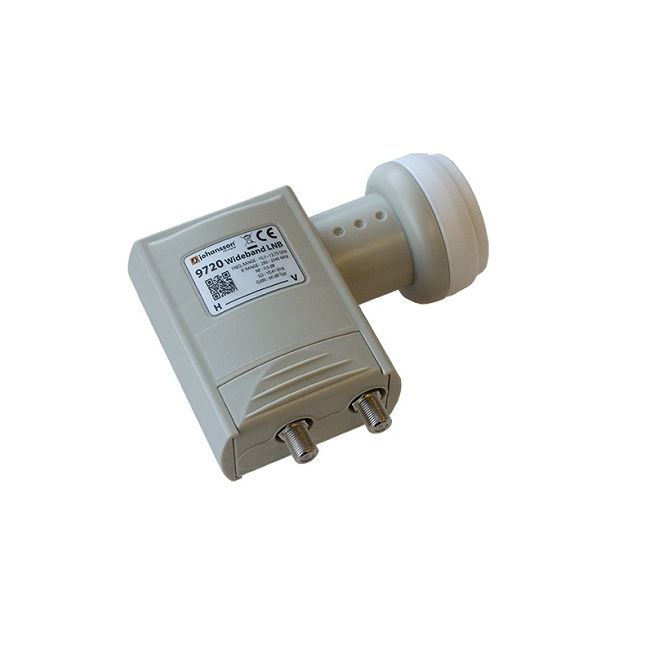

Johansson 9720 Wideband LNB
Wideband LNB with vertical and horizontal output (290-2340 MHz)
No stock at the moment, please call.
SKU
AEJOH9720#
Wideband LNB with vertical and horizontal output (290-2340 MHz)
Receives any standard Ku satellite signal and generates a Horizontal and Vertical IF signal. Each output contains both the low and the high band of the polarization.
- LNB, able to receive 1 Ku satellite orbital slot
- 1 Horizontal and 1 Vertical output
- low noise
- output frequency range 290-2340 MHz
|
9720 Wideband LNB |
||
|---|---|---|
|
Input |
- |
1Ku |
|
Input frequency |
MHz |
10700 – 12750 |
|
Outputs |
- |
2 (V & H) |
|
Output frequency |
MHz |
290 – 2340 |
|
LO frequency |
MHz |
10410 |
|
Conversion gain |
dB |
Typical 55 |
|
Noise figure |
dB |
Typical 0,5 |
|
Cross polarization isolation |
dB |
25 |
|
Output power |
dBm |
-30* |
|
DC supply voltage |
VDC |
9 – 20 |
|
Power consumption |
W |
< 1 |
|
Operating temperature |
°C |
-40 to +60 |
|
LNB mount fitting |
mm |
40 |
|
Dimensions |
mm |
135 x 120 x 60 |
* output power depends on dish size and the satellite's EIRP
