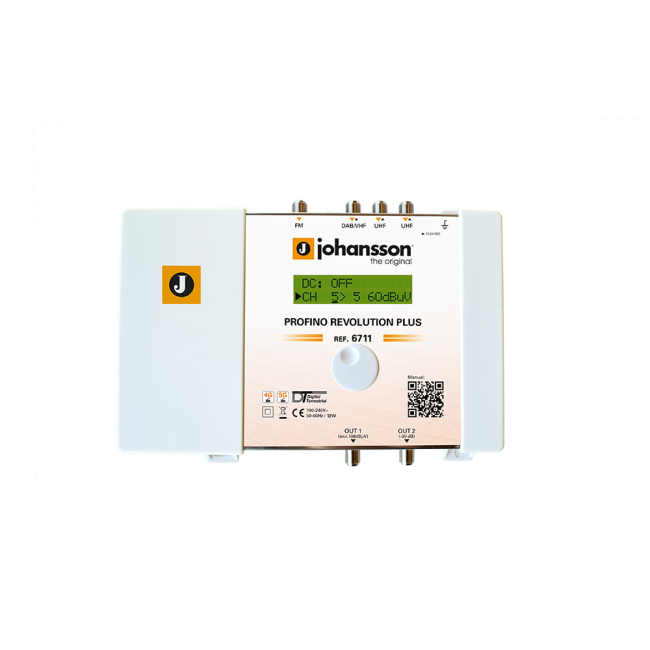

Johansson 6711UK Profino Revolution lite

Programmable terrestrial filter amplifier: 4 inputs: 1 FM + 1 DAB/VHF + 2 UHF / 20 Muxes / AGC / 12-24 V remote power. The Profino Revolution Plus is a light version digital Profiler. The 6711 has 1 FM, 1 DAB/VHF and 2 UHF inputs. > 50 Channels can be filtered, amplified and converted. The filters on adjacent channels are extremely sharp. Main features: Read-out of input level strength: no need for field strength meter Can process up to 20 channels Sharpest filters on the market (50dB on adjacent channels) Real-time AGC on all individual multiplexes Flex Matrix: complete flexibility in assigning filters from any input Easy to install RED compliant(selectivity classification 0 – 1 – 2 – 3 – 4) Equalize and optimize terrestrial signals for your optical installation (70 dBµV output power is optimal: you might use the test port (-30dB)) Inputs: 1 FM + 1 DAB/VHF + 2 UHF Outputs: 1 main (FM-DAB-VHF-UHF) + 1 test port (-30dB) Frequency range (MHz): FM: 88 - 108 VHF:174 - 240 UHF: 470 - 862 LTE protection (MHz): Automatic selection: 694, 790 or OFF Input level (dBµV): FM: 37 - 77 VHF: 45* - 109 UHF: 45* - 109 FM output power (60dB/IM3) (dBµV): 113 VHF/UHF output power (60dB/IM3) (dBµV): 114 VHF/UHF output power (36dB/IM3) dBµV: 125 VHF/UHF output power with 1 MUX (dBµV): 108 VHF/UHF output power with 6 MUX (dBµV): 107 Number of channels: More than 50 (15 filters) Add channels: Per 1, 2, 3, 4, 5 or 6 MUXes Conversion: from any VHF to any VHF channel / from any UHF to any UHF channel Gain (dB): FM: 35 VHF: >60 UHF: > 60 Gain adjustment (dB): FM: 20 VHF/UHF: Channel AGC General attenuator (dB): 20 Selectivity (dB/1MHz): 35 Return Loss (dB): 10 Output MER (dB): VHF: >35 UHF:> 35 ESD protection: All inputs DC @ VHF/UHF input (V): 12 or 24 DC Load current @ VHF/UHF input (mA): 100 (total for the 3 inputs) Operating temperature (°C): -5 to +50 Power Supply (V): 100-240 Power Consumption (W): 12 Dimensions (mm): 217 x 165 x 59 Weight (kg): 0,8 For 64QAM with code rate 3/4
