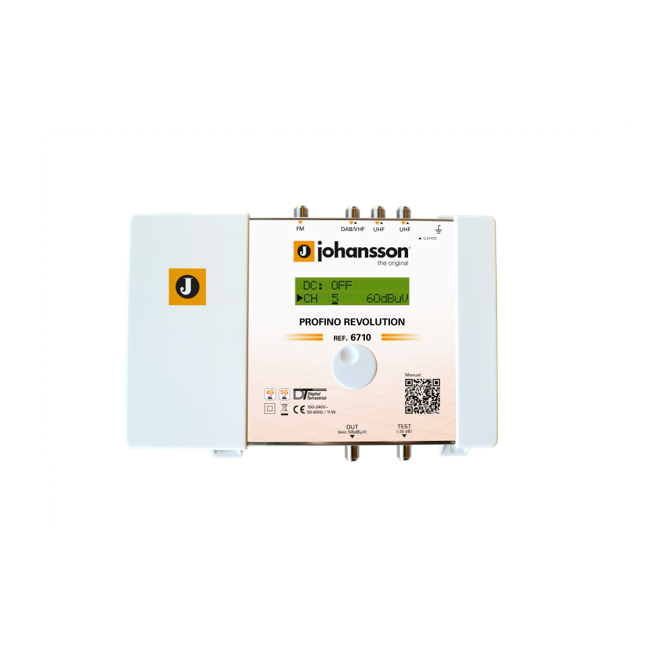

Johansson 6710 - PROFINO REVOLUTION
Programmable terrestrial filter amplifier: 4 inputs: 1 FM + 1 DAB/VHF + 2 UHF
Compact Programmable Headend Amplifier for MATV Applications.
Programmable terrestrial filter amplifier: 4 inputs: 1 FM + 1 DAB/VHF + 2 UHF / 20 Channels / AGC / 12-24 V remote power.
The Profino Revolution is a light version digital Profiler.
The 6710 has 1 FM, 1 DAB/VHF and 2 UHF inputs.
Up to 20 Channels can be filtered and amplified.
The filters on adjacent channels are extremely sharp.
The new Johansson Profino Revolution has no equivalent on the market due to its revolutionary technology:
- Read-out of input level strength: no need for field strength meter
- Can process up to 20 channels
- Sharpest filters on the market (50 dB on adjacent channels)
- Real-time AGC on all individual multiplexes
- Flex matrix: complete flexibility in assigning filters from any input
- Made in Europe, for worldwide application
- The Profino Revolution is really easy to install
- RED compliant (selectivity classification 0 – 1 – 2 – 3 – 4)
