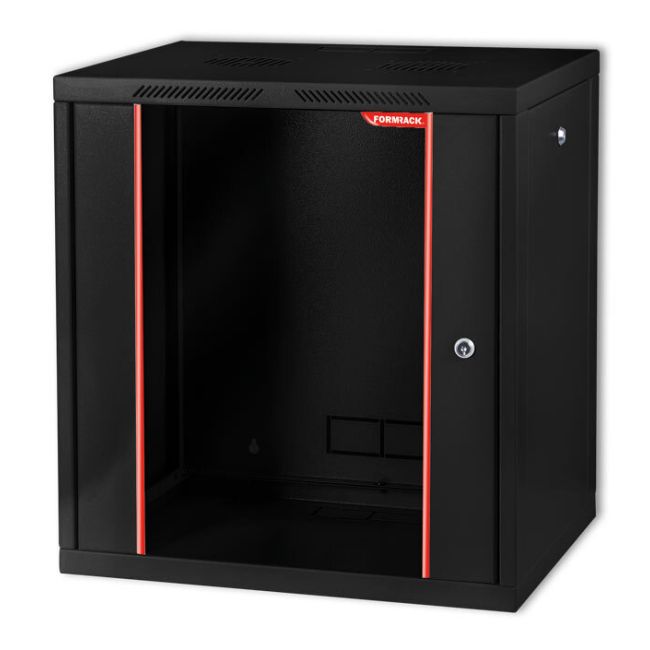

Formrack 12U560 19" Wall Mount Cabinet

The Formrack Alfaline Range 12U 560 is a professional-grade 19" wall-mountable cabinet, engineered for housing networking, server, and telecommunications equipment. Its durable construction and versatile features make it a perfect solution for a wide range of applications.

• Dimensions:
  • Height: 12U
  • Depth: 560 mm
  • Width: 553 mm
• Construction:
  • The rear cover is constructed from high-strength 1.5 mm DKP sheet metal, providing a sturdy base for wall mounting.
  • The front door features 4 mm thick, impact-resistant, tempered, and smoked-colored glass, supported by a metal frame.
  • The side covers are made from DKP sheet metal and, along with the front door, are lockable and easily removable for convenient access to your equipment.
• Ventilation:
  • The cabinet is designed to accommodate cooling units with one or two fans to ensure optimal equipment performance.
• Cable Management:
  • Cable entry points are available on the top, bottom, and rear of the cabinet, providing flexibility for cable routing.
  • A sliding and dust-protected brushed cable entry is located at the bottom of the cabinet.
• Mounting Features:
  • Four 19” mounting profiles are included and can be adjusted in depth to suit your equipment needs.
  • The mounting profiles feature 'U' markings to simplify the installation process.
• Finish and Standards:
  • The cabinet is finished with an impact-resistant, high-strength electrostatic Ral 9005 black paint.
  • It complies with RoHS, CE, and EN 61587-1 standards.
• Versatility:
  • While designed for wall mounting, this cabinet can be converted to a floor-standing unit by attaching fixed feet or castors.
