Dahua Single Port Ethernet over Coax Transmitter

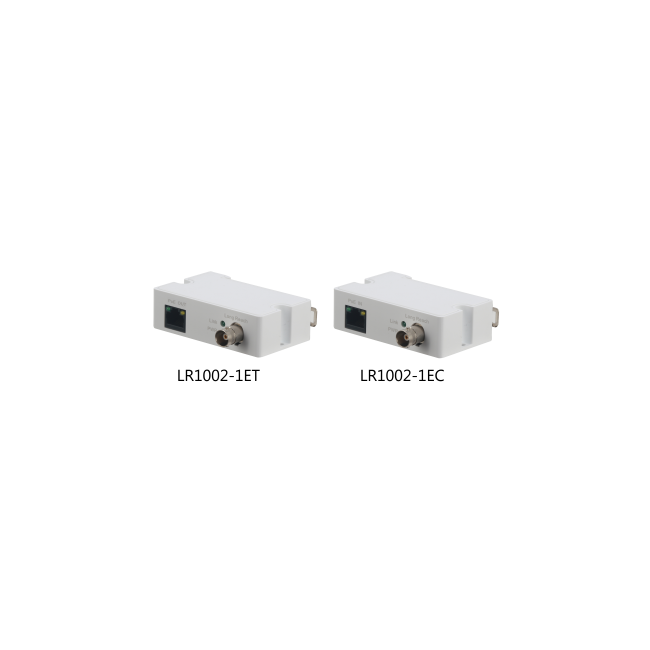

The product is divided into transmitter (LR1002-1ET) and receiver (LR1002-1EC). It is designed to work as a type of converter from RJ45 to BNC port, which supports long range power supply transmission via coaxial cable. It provides one BNC coaxial port and one RJ45 port. The product is equipped with two transmission modes which are 100Mbps and 10Mbps. It can be modified according to the transmission distance.
Supports IEEE802.3, IEEE802.3u standards
Supports IEEE802.3af and IEEE802.3at power supply standards
Port: 1 RJ45 10/100Mbps, 1 BNC
Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
Supports MDI/MDIX self-adaption
Supports long range power supply transmission via coaxial cable
