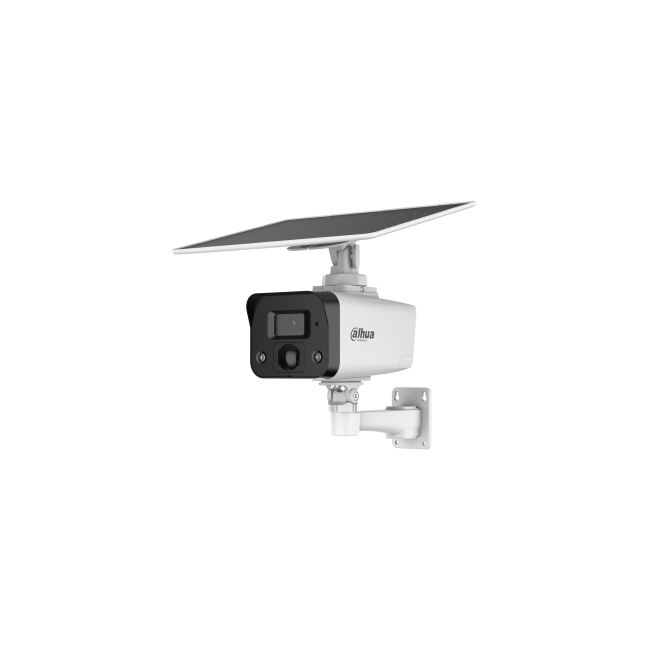

Dahua IPC-HFW2441DG-4G-SP-B 4MP 4G Solar Dual Light Fixed Bullet 3.6mm
4MP Smart Dual Light Fixed-focal Bullet 4G Solar
> 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2560 × 1440) @15 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 20 m.
> Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
> Built-in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks.
> Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature.
> In AOV mode, the camera wakes up when a person or vehicle appears, providing 24/7 surveillance while maintaining ultra-low power consumption.
> Supports max. 512 G Micro SD card; built-in Mic and speaker; supports two-way talk.
> The solar panel offers both integrated and detachable designs, and supports multi-dimensional angle adjustment.
> It features a built-in 64Wh high-capacity lithium iron phosphate battery with stable performance.
> It supports both 12 VDC and Type-C power supply options, used respectively for connecting an external solar panel and for temporary charging with a power bank.
> IP67 protection.
> SMD.
€410.00
SKU
SECIPDHHFW2441DG-4G-SP-B
| Camera | |
| Image Sensor | 1/3" CMOS |
| Max. Resolution |
2560 (H) × 1440 (V)
|
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s
|
| Min. Illumination |
0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >40 dB |
| Illumination Distance |
3.6 mm: Up to 30 m (98.43 ft) (IR)
Up to 20 m (65.62 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number |
1 (IR LED); 1 (Warm light)
|
| Angle Adjustment |
Pan: 0° to 360°
Tilt: –60 °to 0° Rotation: 0° to 360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View |
3.6 mm: H: 78.4°; V: 42.4°; D: 92.4°
|
| Iris Control | Fixed |
| Close Focus Distance |
3.6 mm: 1.5 m (4.92 ft)
|
| DORI Distance |
Lens Detect Observe Recognize Identify 3.6 mm 78.0 m
( 255.91 ft) 31.2 m ( 102.36 ft) 15.6 m ( 51.18 ft) 7.8 m ( 25.59 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| Intelligence Notes | SMD |
| Video | |
| Video Compression | H.265 |
| Video Frame Rate |
Main stream: 2560 × 1440@(1–15 fps)
sub stream: 640 × 360@(1–15 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 2 streams |
| Resolution |
4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
|
| Video Bit Rate |
H.265: 32 kbps–4096 kbps
|
| Day/Night |
Auto(ICR)/Color/B/W
|
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection |
OFF/ON (4 areas, rectangular)
|
| Smart Dual Light | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker |
Yes, built-in speaker
|
| Audio Compression | G.711a |
| Alarm | |
| Alarm Event |
SD card error; SD card full; motion detection; PIR alarm; low battery alarm
|
| Network | |
| Network Port |
RJ-45 (10/100 Base-T)
|
| Carrier Network System |
(-EAU/EUR): FDD-LTE: B1/B3/B5/B7/B8/B20/B28;
Applicable regions: Europe, Middle East, Africa Power class 3: 23dBm ±2.7dB (-LA): FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66; Applicable regions: Latn America Power class 3: 23dBm ±2.7dB |
| Interoperability | P2P |
| Storage |
Micro SD card (support max. 512 GB)
|
| Management Software | DMSS; DSS Pro |
| Mobile Client | iOS;Android |
| Certification | |
| Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
| Port | |
| USB | 1 Type-C Port |
| Power | |
| Power Supply | 12 VDC |
| Power Consumption |
Ultra power saving mode: 0.036 W;
Power saving mode: 0.047 W; AOV mode: 0.26 W; Performance mode: 1.33 W |
| Environment | |
| Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F)
|
| Operating Humidity |
≤95% (RH), non-condensing
|
| Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F)
|
| Storage Humidity |
≤95% (RH), non-condensing
|
| Protection | IP67 |
| Structure | |
| Casing Material | Plastic |
| Product Dimensions |
256 mm × 290 mm × 197 mm (10.08" × 11.42" × 7.76") (L × W × H)
|
| Net Weight | 1357 g (2.99 lb) |
| Gross Weight | 2869 g (6.33 lb) |
| Battery | |
| Operating Temperature |
Charging: 0 °C to +50 °C (32 °F to +122 °F)
Discharging: –20 °C to +60 °C (–4 °F to +140 °F) |
| Net Weight | 550 g (1.21 lb) |
| Battery Type |
Lithium iron phosphate
|
| Battery Capacity | 64Wh |
| Battery Voltage | 6.4 V |
| Cycle Lifetime |
Ultra power saving mode (no-trigger recording): 76 days
Power saving mode (30 daily alarms of under 15s each): 56days AOV mode (30 daily alarms of under 15s each): 10 days Performance mode (continuous recording): 2 days |
| Battery Life |
More than 1,000 cycles
|
| Solar Module | |
| Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F)
|
| Product Dimensions |
285 mm × 235 mm × 2.5 mm (11.22" × 9.25" × 0.1") (L × W × H)
|
| Max. Power | 10.5 W |
| Cell Type |
Monocrystalline silicon
|
| SKU | SECIPDHHFW2441DG-4G-SP-B |
|---|---|
| Manufacturer SKU | IPC-HFW2441DG-4G-SP-B |
| Manufacturer | Dahua |
| In Store | 1 |
| Total Stock | 1 |
