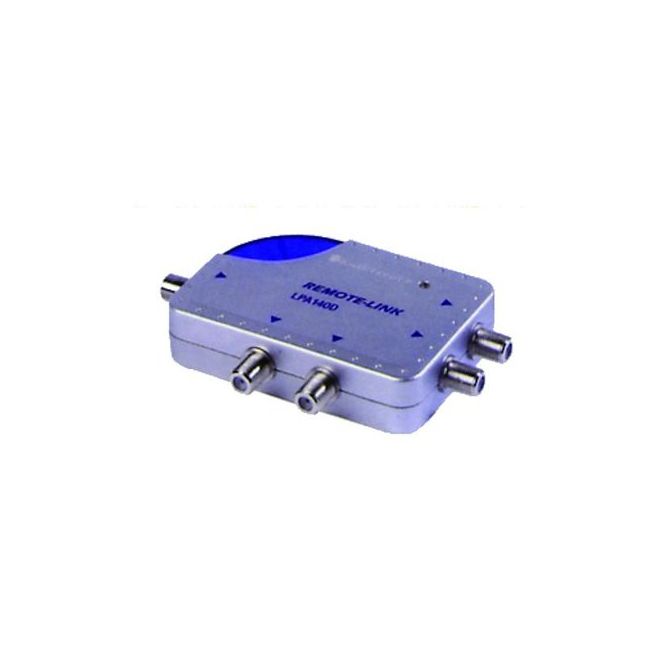

Antiference LPA140D Remote Link 4 Way Amplifier. LTE
4-Way Skypass Distribution Amp. Remote powered.
SKU
AELPA140D#
Antiference 4-Way Skypass Distribution Amp. Remote powered.
TECHNICAL SPECIFICATION
| LPA140D | |
| No. of Inputs | 1 |
| No. of Outputs | 4 |
| Frequency Range | 88-862MHz |
| Gain | 6dB |
| Noise Max | <3.5dB |
| Max. Output* | 78dBμV |
| Isolation Between Outputs | >15dB |
| Return Path Frequency | |
| Impedance | |
| Power Supply from Sat. receiver | |
| Power Supply via 3.5mm Jack external supply |
* DIN 45004B 3 carriers, IMD3 - 60dB
| Manufacturer SKU | LPA140D |
|---|---|
| Manufacturer | Antiference |
| Scope | azn |
