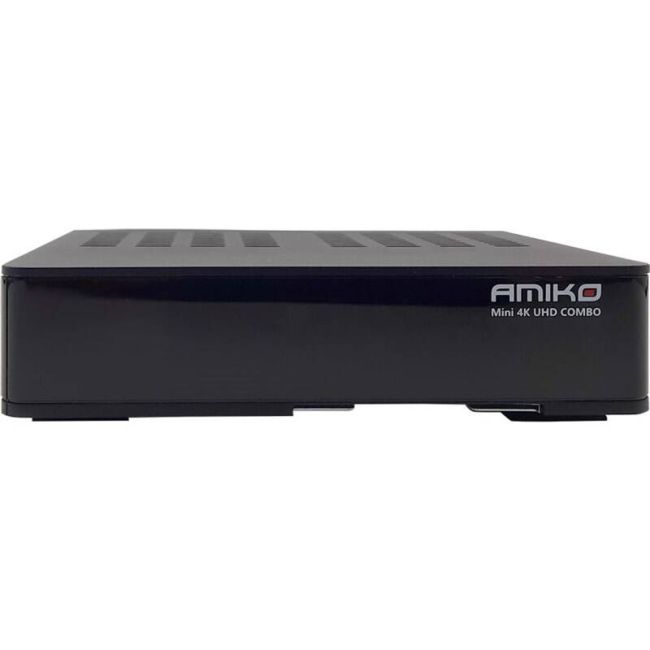

Amiko Mini Combo 4K UHD UK
Amiko 4K UHD Digital Combo, with Conax embedded card reader
2 High Speed USB 2.0 Connection Suppor
External infra port
Ethernet connection
TimeShifting Support
Software Upgrade via USB
Digital Audio Bit-Stream via HD OUT
MKV, AVI, MPG, MP4, TS, VOB, JPEG & MP3 Playback Support
Low Power Consumption in Stand-By
SKU
SATA4KUHDCOMBO
- Buy 10 for €51.50 each and save 4%
- Buy 20 for €49.50 each and save 7%
| Tuners & Demodulation |
| Tuner Type: DVB-T2 / DVB-C |
| Frequency Range: 48 Mhz - 862 Mhz |
| RF Input Level: "-80dBm to -20dBm" |
| Antenna power output: DC 5V at max 75mA, Overload protection |
| Demodulation: COFDM 1K, 2K, 4K, 8K normal |
| and extended, 16K normal and extended, |
| 32K normal and extended |
| Input Symbol Rate: 1.0 - 7.0Ms/s |
| Constellations: QPSK, 16QAM, 64QAM, 256QAM |
| / Both rotated and non-rotated |
| Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 |
| Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6 |
| Tuner Type: DVB-S / DVB-S2 |
| Input Connector: F-type, Connector, Female |
| Signal Level: -65 to -25 dBm |
| LNB Power & Polarization: Vertical: +13V/+14V, |
| Horizontal: +18V/+19V |
| Current: Max. 400mA |
| Overload Protection |
| 22KHz Tone Frequency: 22±1KHz |
| DiSEqC Control: Version 1.0, 1.1, 1.2, USALS |
| Demodulation: QPSK, 8PSK |
| Input Symbol Rate: 2-45 Mbps, |
| FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto |
| MPEG TS A/V Decoding |
| Transport Stream: MPEG-2, MPEG-4, H.264, H.265 |
| Input Rate: Max.120Mbit/s |
| Aspect Radio: 4:3, 16:9, Letter Box |
| Video Decoding: UHD 4K x 2K, HEVC/H.265, MPEG-4/H.264 SP@L3 to ASP@L5, MP@ML, MP@HL, MP@L4.1, HP@L4.1 |
| Video Resolution: 720*480p/i, 720*576p/i,1280*720p, 1920*1080p/i, 3840 *2160p |
| Audio Decoding: AAC-LC, HE-AAC, LPCM, MP3, WMA, WAV |
| Audio Mode: Left / Right / Stereo/ Mono |
| Sampling Rate: 32, 44.1 and 48KHz |
| System Resources |
| Main Processor: 1000 MHz |
| Flash Memory: Serial Flash 8MB x 1 |
| DDR RAM: DDRIII 1866 128MBx2 |
| A/V & Data Input/Output |
| Ethernet: 10/100M RJ45 |
| USB: Two USB 2.0 slot Compatible |
| Digital Video Output |
| S/PDIF: Coaxial Digital Audio or Dolby Digital Bit Stream Output |
| SCART: (1-CVBS, 1-L/R,SL,FB),or RCA output |
| IR: Jack-type, External IR sensor connection |
| RS232: Jack-type, Transfer rate 115.2Kbps, 9 pin D-sub Type |
| Physical Specifications |
| Size[W*H*D]: 146mm*110mm*35mm |
| Net Weight: 0.25 Kg |
| Operation Temperature: 0°C-+45°C |
| Storage Temperature: -10°C-+70°C |
| Storage Humidity: 5 & -95 & RH (Non-Condensing) |
