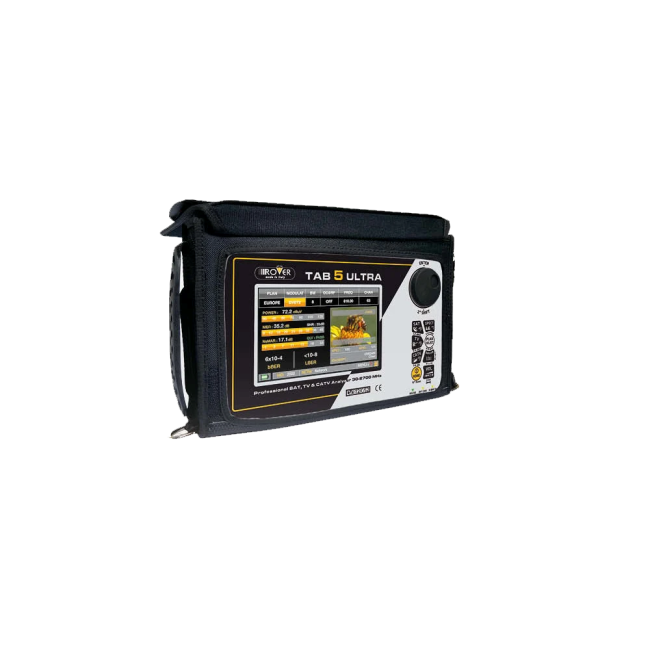

Rover Tab 5 Ultra DVB-T & DVB-S2 Meter

GENERAL SPECIFICATIONS

5” TFT TOUCH display: 16:9 high resolution and high brightness;
Power supply: Built in LiPo battery with 2 to 4 hours duration (depending on the function) & battery test function;
DC voltage at RF input: 5 – 12 – 18 – 24 VDC, DiSEqC-SCR & dCSS commands;
PC Interface: USB-B;
Front-Panel: Alpha numeric keypad;
Power Save: TFT backlight timer, brightness adj;
PC Management: SMART software;
Weight: only 1,4 Kg with batteries;
Size: H 13,0 x W 25,5 x D 4 cm;
Housing: Aluminium and Steel and padded bag.
OPTIONS

Optic ingress to be requested when ordering the instrument, which can only be installed at ROVER;
Decoding HEVC H265 images;
2.4 & 5 GHz Wi-Fi analyzer;
Dolby audio AC3 DD+;
Elite bag with extra padding.
NOTE:

All technical features can change without notice;
Some options (APP) must be requested when ordering the instrument;
The screens and the texts of the relative MENU, can change without notice from model to model and according to the SW version installed;
Visit WWW.ROVERSHOP.IT to check the available accessories.
Benefits
SPECIAL FUNCTIONS

Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode;
Automatically identifies all the signals with digital modulation SAT, TV and CATV;
Automatic Assistant: Signal quality analysis, channel scan memorization;
Barscan TV & CATV function from 10 to 100 channels on one screen.
Buzzer & Noise Margin real time graph for digital signals microinterruptions;
Reflectometric measurements APP (opt.);
Optical input (opt.);
2.4 & 5 GHz Wi-Fi analyzer (opt.);
HEVC H265 decoder (opt.);
SATELITE: DiSEqC – SCR & dCSS commands, SAT Finder & SAT Expert functions.
Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or local keyboard;
Loggers: TV, SAT & combined with stop & go function;
SAT Memory Plan: More than 2.000 transponders prememorized for world wide satellite;
Free SMART PC interface program and FW upgrades.
Features
SPECIFICATIONS: MEASUREMENTS, SPECTRUM ANALYSIS & PICTURES

Frequency range: TV, CATV & Radio: 30-1000 MHz; SAT: 700–2700 MHz;
Frequency resolution: TV & CATV 25 KHz; SAT: 5 MHz;
Power range Meas.: TV 35 to 115 dBμV, SAT 5 to 105 dBμV;
Digital Meas: Digital Power, MER (36 to 40 dB max depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER;
Measurement Resolution: 0.1 dB;
Level Measurement Accuracy: 1 dB typ. (2 dB max.);
Resolution filter bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 5 MHz @ -3 dB;
Constellation: for TV/CATV and SAT signals;
Spectrum: Fast spectrum, max hold and spectrum memorization with real time compare function;
Net-id on board: Net-id, NID, TSID, LCN, SAT orbit position;
Echoes, Pre-echoes, Micro-echoes: Representation in real Time;
Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL;
Digital Pictures: MPEG2-4 SD & HD, HEVC (opt.) pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen.
OPTICAL MEASUREMENTS

SC input connector;
Automatic loss calculation;
Wavelengths (nm): 1310, 1490, 1550;
Range: -25 to +6 dBm;
Resolution: 0.1 dB;
Accuracy: +/- 0.5 dB;
Optical to RF conversion. COMM. PORTS AND OUTPUTS;
RF Input : 75 ohm (interchangeable “F”);
USB 2.0: Type B (PC Interface);
Audio: AAC supplied, DOLBY (opt.);
Video: Composite Video input.
