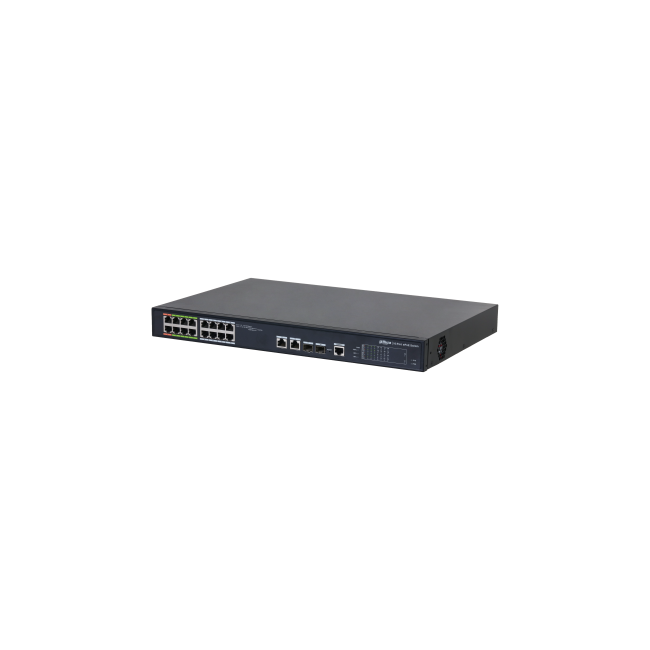

16-Port Managed Switch 8-Port PoC & 8/16-Port PoE
Layer-two web managed ePoE switch
* The parameters and datasheets below can only be applied to V2.0(version 2.0)
> Three self-adaptive transmission modes which are IEEE, E100 and E10.
> Long distance PoE transmission up to 800 m with ePoE technology.
> Both twisted-pair transmission and coaxial cable transmission.
> IEEE802.3af, IEEE802.3at and Hi-PoE compliant.
> PoE management, Green PoE, Legacy Support.
> Manage through iLinksView, web client, and SNMP softwares.
SKU
NETDHLR2218-16ET-240
| Manufacturer SKU | DHLR2218-16ET-240 |
|---|---|
| Manufacturer | Dahua |
| Network Port | 16 |
| Uplink Port | 2 Gigabit Base-T, 2 1000 Base-X |
| Transmission Distance | 100m, 800m (ePoE) |
| Power Capability | PoE+, Hi-PoE, PoC |
| Management | Managed |
| Fiber Switch | BASE-X port |
| Install Options | Desktop, Rack-Mounted, DIN-Mounted, Wall-Mounted |
