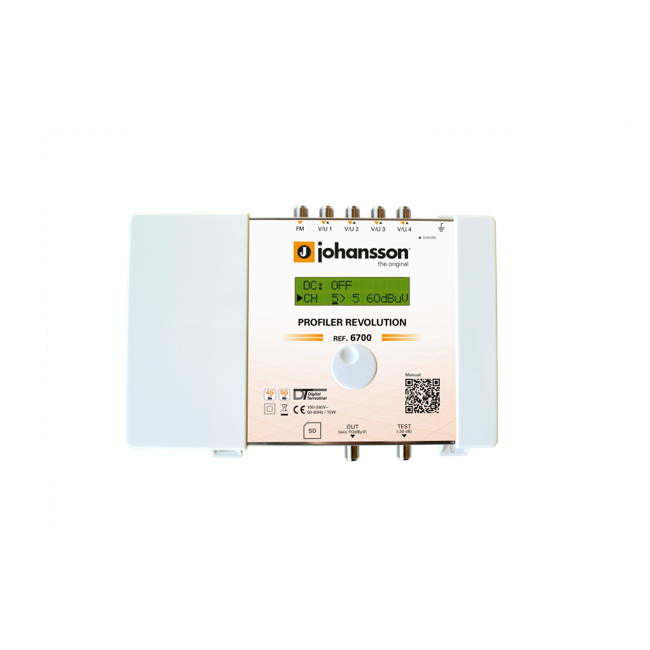

Johansson 6700 - PROFILER REVOLUTION

Programmable terrestrial filter amplifier: 5 inputs: FM / 4 x VHF-UHF / > 50 Clusters / AGC / 12-24 V remote power

The new Johansson Profiler Revolution has no equivalent on the market due to its revolutionary technology:

  • Read-out of input level strenght: no need for field strength meter
  • Can process and convert more than 50 channels
  • Sharpest filters on the market (50 dB on adjacent channels)
  • Real-time AGC on all individual multiplexes
  • Flex matrix: complete flexibility in assigning filters from any input
  • Made in Europe, for worldwide application
  • The Profiler Revolution facilitates straightforward configuration and is the most cost-efficient Profiler on the market

.

HERE'S WHAT THE FIRST USERS OF THE PROFILER REVOLUTION SAY:

it truly is an innovative product with 5 big advantages:

  • The most cost-efficient channel convertor solution on the market, with great flexibility to assign any VHF/UHF input to any VHF/UHF output
  • Very easy and fast installation, without the need for a field strength meter
  • Extremely sharp filters, 50 dB on adjacent channels and integrated 4G/5G/LTE filters. The Profiler Revolution can filter and amplify very weak signals. This is something that our test users could not do in the past with other equipment.
  • Perfect headend for your fibre installation to equalise and optimise the signals
  • Excellent quality of the output signal, the Profiler Revolution optimises the incoming digital terrestrial signal to assure supreme video quality on the end-users' TV-screens



    6700
Inputs - 4 VHF/UHF + 1FM
Outputs - 1 main (FM-VHF-UHF) + 1 test port (-30dB)
Frequency range MHz
MHz
MHz
FM: 88 - 108
VHF:174 - 240
UHF: 470 - 862
LTE protection MHz Automatic selection: 694, 790 or OFF
Input level dBµV
dBµV
dBµV
FM: 37 - 77
VHF: 40* - 109
UHF: 40* - 109
FM output power (60dB/IM3)
VHF/UHF output power (60dB/IM3)
VHF/UHF output power with 1 MUX
VHF/UHF output power with 6 MUX
dBµV
dBµV
dBµV
dBµV
113
120
113
110
Conversion - Yes (from any VHF-UHF channel to any VHF-UHF channel)
Gain dB
dB
dB
FM: 35
VHF: > 45
UHF: > 55
Gain adjustment  dB
dB
FM: 20
VHF/UHF: Channel AGC
General attenuator dB 20
Slope adjustment dB 9
Selectivity dB/1MHz 35
Output MER  dB
dB
VHF: 35
UHF: 35
ESD protection - All inputs

Remote voltage for
preamp

Remote current

V


mA

12 or 24


100 (total for the 4 inputs)

SD port - Yes (for copy configuration and upgrade features)
Operating temperature °C -5 to +50
Power Supply V 100 - 240
Dimensions mm 217 x 165 x 59
Weight kg 0,8



* For 64QAM with code rate 3/4
